CNC high presicion alumina ceramic nozzle with high strength
Description:
Compared with metal materials, the advanced ceramic with high hardness, high strength, high temperature, wear resistance, corrosion resistance, acid and alkali resistance, oxidation resistance, insulation, nonmagnetic, good chemical stability and other excellent performances.
CNC high presicion alumina ceramic nozzle with high strength:
1. Excellent insulation, security, long working life.
2. High temperature resistance.
3. Resistance to electric breakdown.
4. Stand wear and tear.
5. High strength.
6. Corrosion resistance.
Application of CNC high presicion alumina ceramic nozzle with high strength:
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields.
Technical Parameters:
| Material | >92% Al2O3 | >95% Al2O3 | >99% Al2O3 | >99.7% Al2O3 | >99.9% Al2O3 |
| Color | white | white | white | white,off-white | off-white |
| Density | 3.45 | 3.5 | 3.75 | 3.9 | 3.92 |
| flexure strength | 340 | 300 | 330 | 390 | 390 |
| compressive strength | 3600 | 3400 | 2800 | 3900 | 3900 |
| elasticity modulus | 350 | 350 | 370 | 390 | 390 |
| impact resistance | 4.2 | 4 | 4.4 | 5.2 | 5.5 |
| Weibull Modulus | 11 | 10 | 10 | 12 | 12 |
| Vickers hardness | 1700 | 1800 | 1800 | 2000 | 2000 |
| coefficient of thermal expansion | 5.0-8.3 | 5.0-8.3 | 5.1-8.3 | 5.5-8.4 | 5.5-8.5 |
| Thermal conductivit | 18 | 24 | 25 | 28 | 30 |
| Thermal stability | 220 | 250 | 250 | 280 | 280 |
| maximum service temperature | 1500 | 1600 | 1600 | 1700 | 1700 |
| 20℃volume resistance | >10ˆ14 | >10ˆ14 | >10ˆ14 | >10ˆ15 | >10ˆ15 |
| dielectric strength | 20 | 20 | 20 | 30 | 30 |
| dielectric constant | 10 | 10 | 10 | 10 | 10 |
We promise:
1.We will offer our best price.
2.Your inquiry will be replied within 24 hours.
3.Experienced staff can give you professional suggestions.
4.We ensure you high quality products and timely delivery.

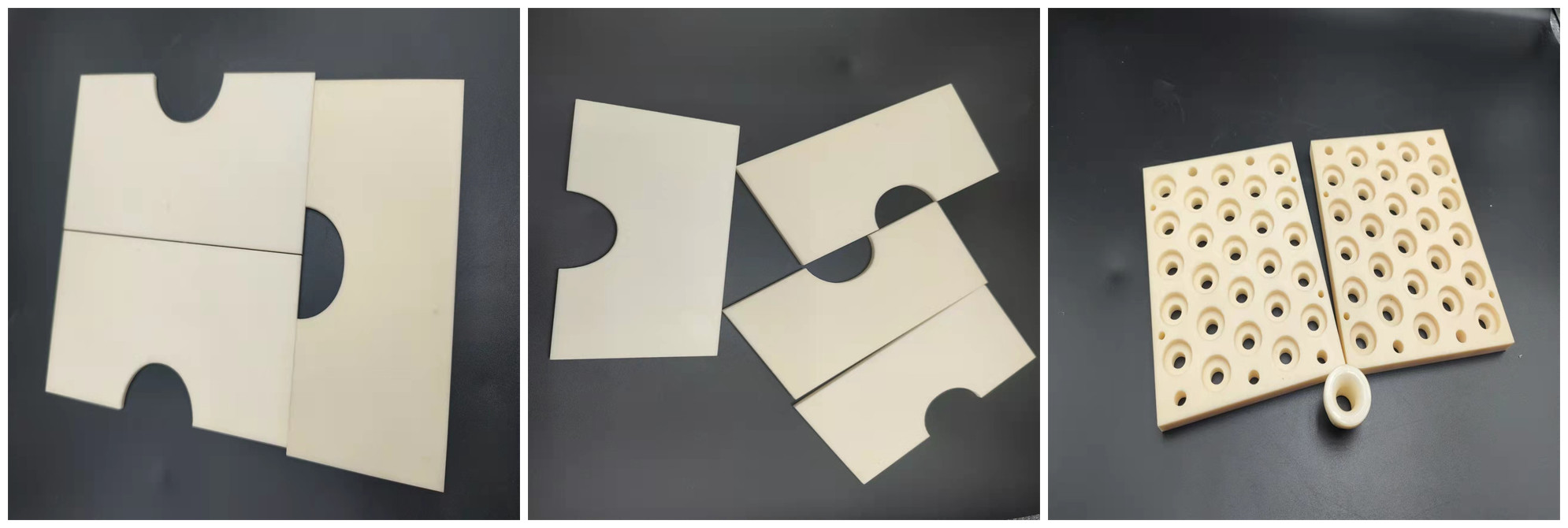

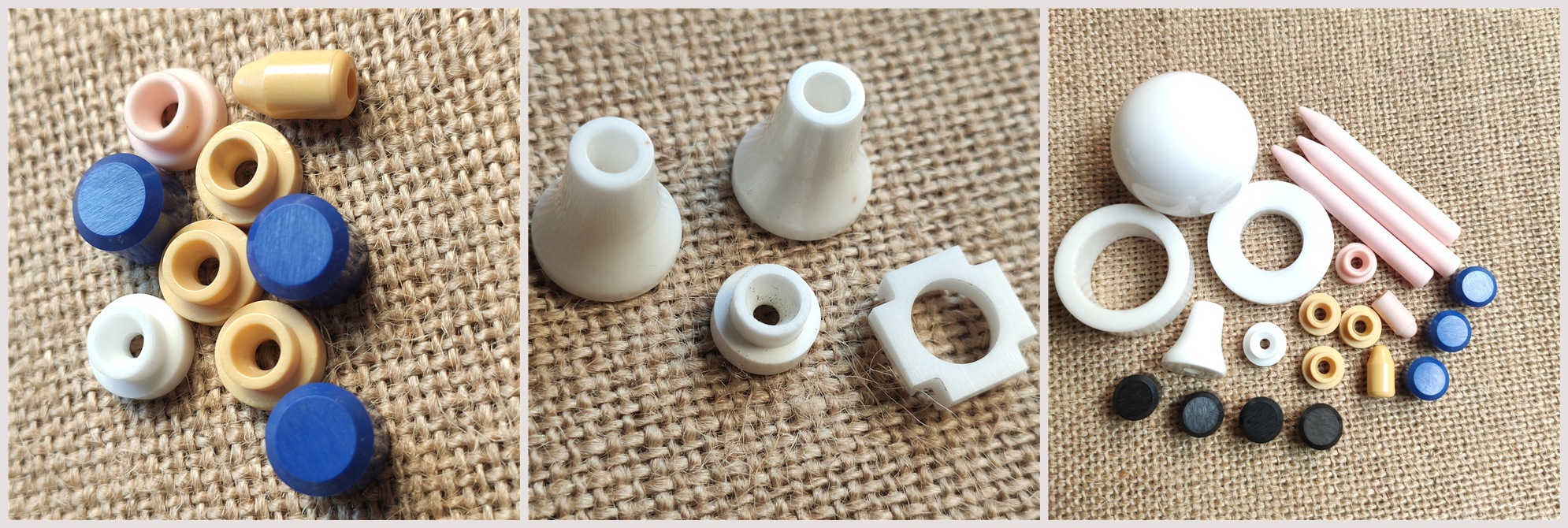

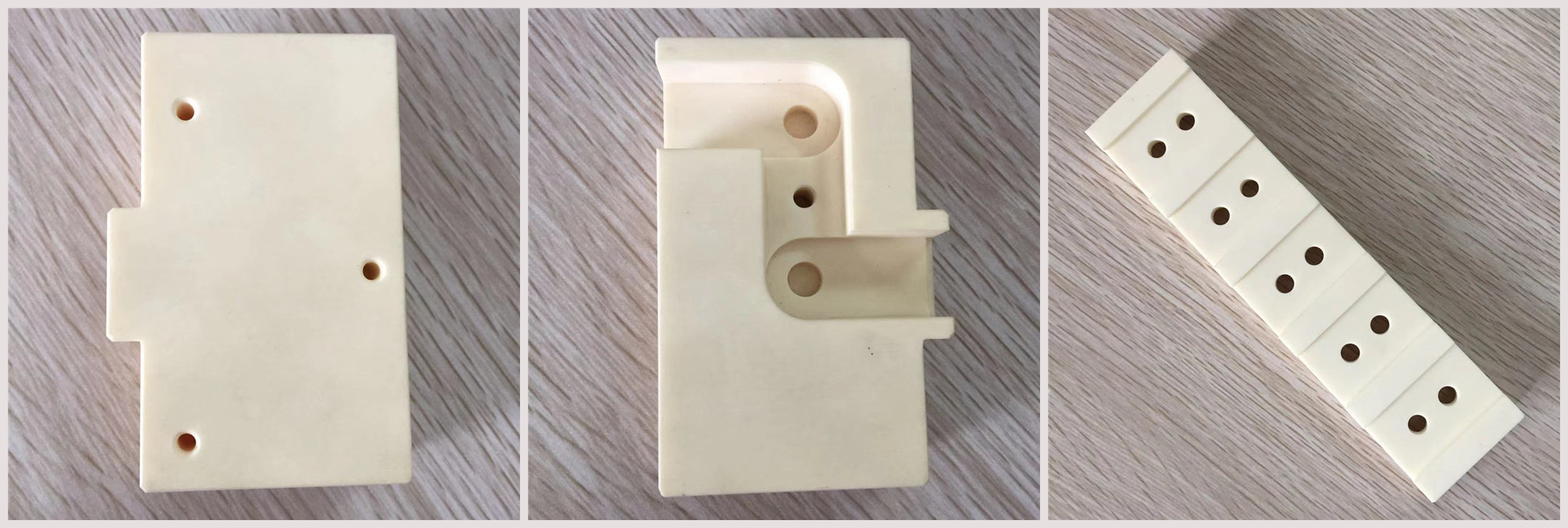

More Pictures:
