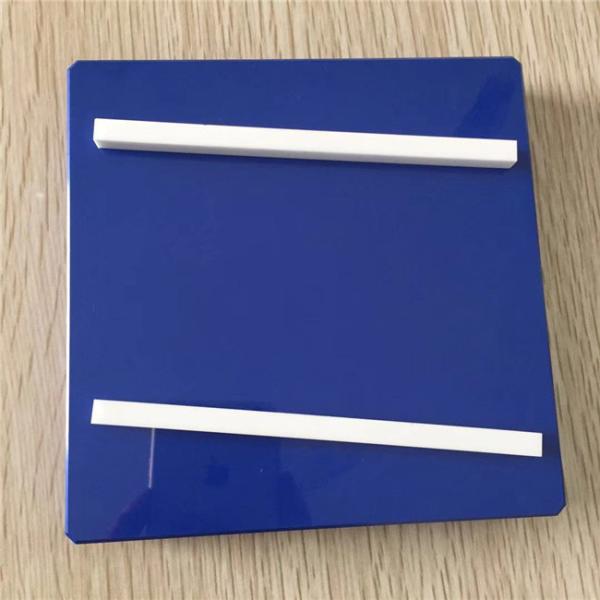

Superhard Mirrored Al2O3 Alumina Ceramic Plate
Description:
Alumina ceramic is Al2O3 as main raw material, in the rare metal oxide as flux, special ceramic sheets after one thousand degrees high temperature roasting into.
Alumina ceramic Al2O3 content is high, the structure is relatively compact, with special properties, it is known as the special ceramics. The Al2O3 ceramic materials are densely arranged six party structure for oxygen ion and aluminum ion, filled in 2/3 with eight sides in the gap, which is the same with natural corundum stable alpha Al2O3 structure, so the ceramics with high melting point, high hardness, good wear - resistance.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical |
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia |
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
Breakdown Voltage
Strength kv/mm | 15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.High hardness.
2.Superior abrasion and impact resistance.
3.Corrosion and chemical resistance.
4. Light weight.
5.Easy installation by epoxy resin or bolt.
6.Improve your working environment-noise, vibration and safety.
Application:
1.Ceramics, mines and other grinding equipment lining.
2·Material thansfer equipment.
3·inside and outside surface of powder separating equipment on iron and steel works.
4·Thermal and power plants.
5·Coals and cements industries,etc.
