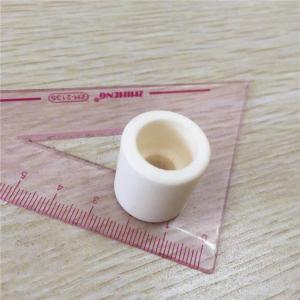

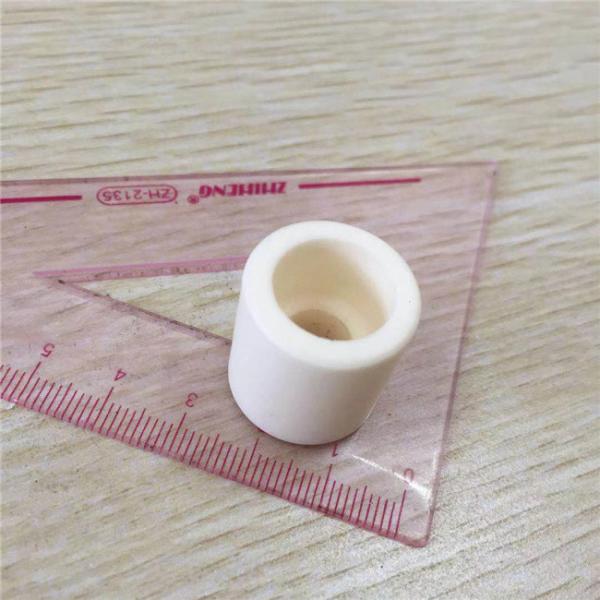

Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

Suzhou Manyoung New Materials Co.,Ltd
Contact Now

Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

  • 1
  • 2

Brand Name : Manyoung

Model Number : Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

Place of Origin : Suzhou,China

MOQ : 10pcs

Price : $10.00 - $1,000.00 / Piece

Payment Terms : T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 20days

Packaging Details : standard pack, carton box、wooden box

height range : 1-200mm / customized

Diameter range : 1-400mm / customzied

Flexural Strength : 1250 MPa

Advantage : Long Working Life

Item : Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

Density : 6.0g/cm3

Bibulous Rate : <0.01%

Surface : Smooth

Heat Expansion rate (10-6K-1) : 10

color : black,yellow,white

Contact Now

Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

Description:

Zirconia Ceramic not only have good feature of high hardness and high wear resistance,but also is excellent in toughness among fine ceramic material, so it's commomly used for structural parts and wear parts. As thermal expansion coefficient is close to the steel, it is also used to connecte ceramic and steel. Expect coommonly used in the field of industrial structural parts, Zirconia Ceramic is also widely used in daily-used ceramic because of its jade-like texture.

Technical Parameters

Performance

Unit

Typical value

Density

g/cm3

>6.0

HV Hardness

Kg/mm2

>1300

Compressive Strength

MPa

5500

Flexural Strength

MPa

1250

Modulus of Elasticity

Gpa

200

Thermal Conductivity

W/(m.k)

3(20-400℃)

Thermal Expansivity Cofficient

10^-6K^-1

10

Facture Toughness

Mpa.m0.5

8

Grain Size

um 0.5

Name: Diamond Polished Wear Resistance Precision Zirconia Ceramic tube Surface: Polishing
Dimension: According Your Request Technology: Machining
Material: Zirconia Ceramic MOQ: 5PCS
Size: Customized Shipping: DHL EMS UPS FEDEX TNT
Item: Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines OEM: Yes And welcome

Principal characteristic of Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

1.High density: over 6 g/cm3, which makes it the densest body of the ceramic products
2.High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth surface finish
3.High toughness: over 1200 MPa, approx. 4 times in comparison with 95% alumina
4. Excellent wear resistance, it's much better than aluminum oxide ceramics with a longer life cycle
5. Low thermal conductivity: less than 3 W/m.k at ambient temperature, so it's an ideal thermal material
6. Good chemical and corrosion resistance, it's equivalent to above 99% alumin

Application :

Various wear parts for wear applications.
1. Valves and pump components.
2. Ceramic plain, balls and roller bearings.
3. Tubes, fixtures etc. for High temperature.
4. Copper tube extruding & reducer dies.

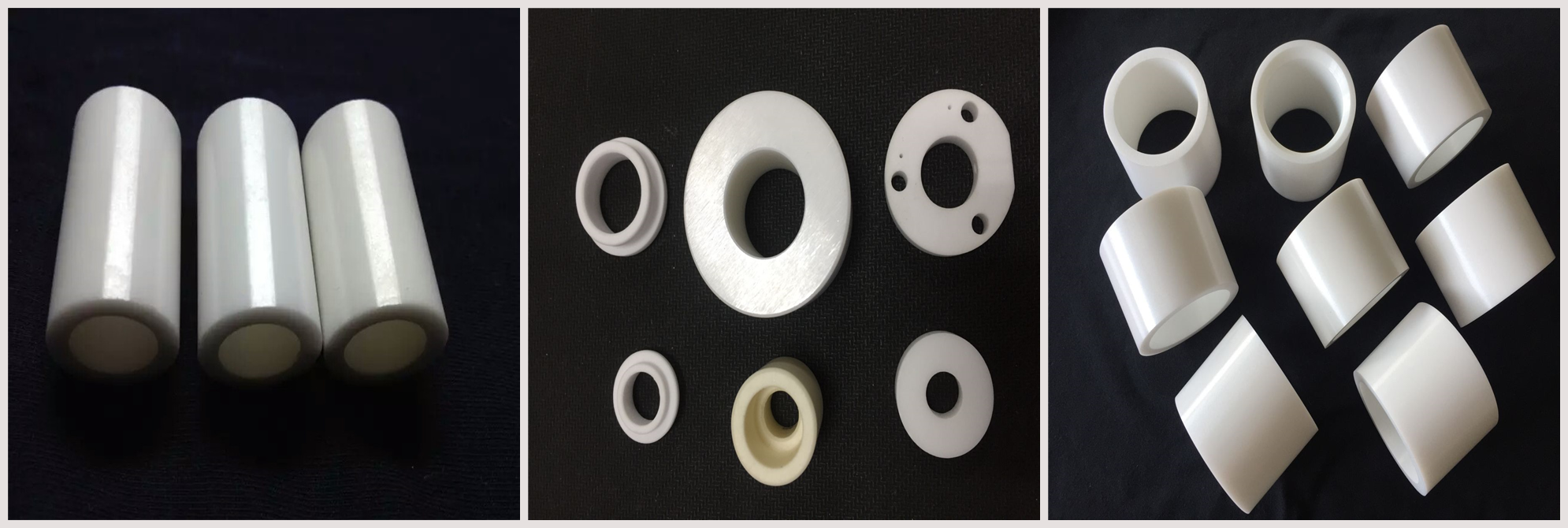

More pictures:

Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

Packaging:

Diamond Polished Wear Resistance Precision Zirconia Ceramic tube

FAQ:

Q:Are you a trading company or a manufacturer?

A:We are professional manufacturer which has almost 5 years of experience in this industry.


Q:Can you produce according to the samples?

A:Yes,we can produce by your samples or technical drawings.


Q:Would it be possible for us to visit your factory?

A:Sure,we welcomed our customers visit our factory in any time.


Q:Will your company supply samples?

A:Yes,the sample expense will be deducted from the value of your order.


Q:What's your payment terms?

A:T/T, L/C, Western Union, Money Gram, are available for us
