Customized zirconia ceramic tube for Industrial
Description:
Yttria (Y-PSZ) stabilised zirconia are mainly used for excellent wear resistance up to 400’C temperature while Magnesia (MgO-PSZ) zirconia are very good at high temperature offering excellent thermal shock and also wear resistance. Y-TZP Zirconia material has tetragonal in structure and has the highest flexural strength of all the zirconia based materials. The fine grain size of Y-TZP lends itself to be used in cutting tools where a very sharp edge can be achieved and maintained due to its high wear resistance. The fine grade size leads to a fully dense with excellent mechanical strength, corrosion resistance, impact toughness, thermal shock resistance and very low thermal conductivity.
Technical Parameters:
| Performance | Unit | Typical value |
| Density | g/cm3 | >6.0 |
| HV Hardness | Kg/mm2 | >1300 |
| Compressive Strength | MPa | 5500 |
| Flexural Strength | MPa | 1250 |
| Modulus of Elasticity | Gpa | 200 |
| Thermal Conductivity | W/(m.k) | 3(20-400℃) |
| Thermal Expansivity Cofficient | 10^-6K^-1 | 10 |
| Facture Toughness | Mpa.m0.5 | 8 |
| Grain Size | um | 0.5 |
| Name: | Customized zirconia ceramic tube for Industrial | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
Principal characteristic of professional Industrial Heat Resistant Refractory Zirconia Ceramic Protection Tube:
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF).
2. Hardness Strength Up To Mohs 9.0; HRA 80-90.
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm.
4. High Polished Surface Up To Rz0.8(Ra0.1) .
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness.
6. Pressure Resistance, Max 2300MPa compressive strength.
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance.
8. Long Service Life.
Application of professional Industrial Heat Resistant Refractory Zirconia Ceramic Protection Tube:
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields.

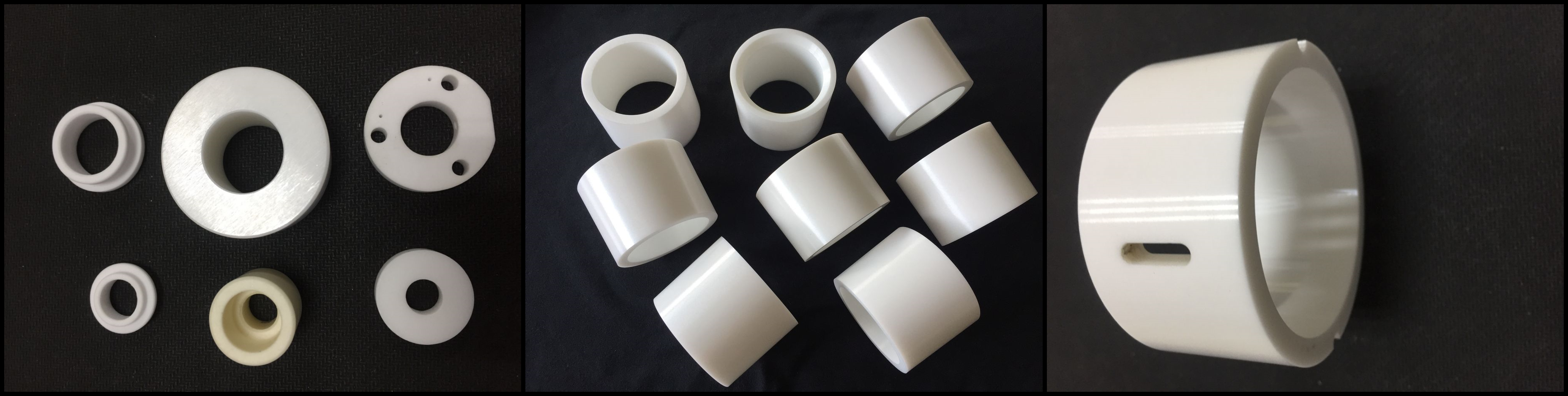

More pictures:
Packaging:
|
|

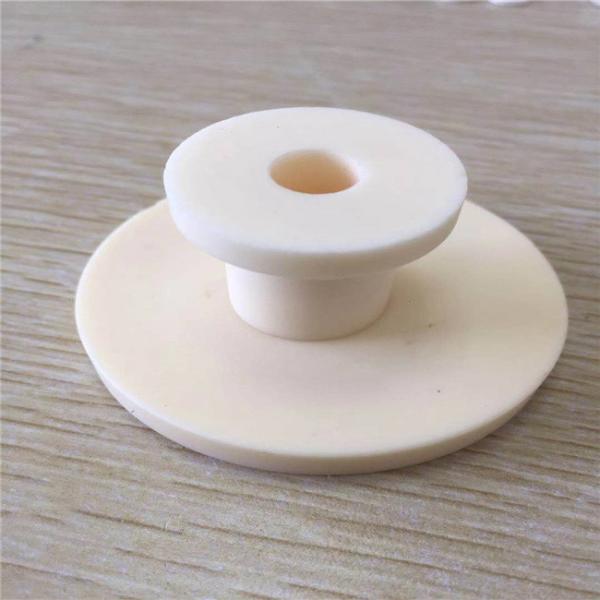

Customized zirconia ceramic tube for Industrial Images
|
